Productinformation

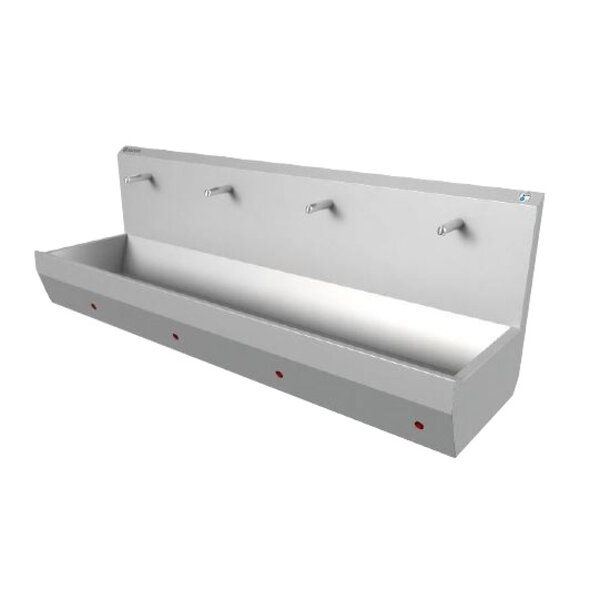

Hand wash trough type ELP-EWG-2S 3S 4S
- for 1 2 3 or 4 persons
- sensor control
- legionella prevention
- also suitable for cleaning your forearms
Description.
Ergonomically designed, with sensor controls ensuring maximum hygiene.
The hand wash sink and tap are made entirely of stainless steel.
By using a perlator, you always have a full jet of water.
To prevent unpleasant odors, there is an odor trap in the drain pipe.
Legionella prevention system.
These sensor-controlled sinks are equipped with an automatic flush when not in use.
The flush is adjustable between 24 and 78 hours after last use.
By flushing the pipes, any possible build-up of bacteria is prevented.
Options and/or accessories:
This is also available with individual sinks (Deluxe version). Contact us
Also available with knee operation, stainless steel mounting column, soap dispensers, paper dispenser and paper basket.
Advantages
- Made of stainless steel
- Thermal mixer tap adjustable to desired temperature
- Tap made of stainless steel, water-saving aerator included
- Connections equipped with dirt trap and non-return valve
- Stench trap
- Reduces risk of infection
- Mounting bracket and siphon included
- Automatic flushing when not in use (only with sensor operation)
| Technical data | Number of wash places 2 | Number of wash places 3 | Number of wash places 4 |
| Width / mm | 975 | 1475 | 1975 |
| Depth / mm | 546 | 546 | 546 |
| Height / mm | 760 | 760 | 760 |
| Safety | IP 65 | IP 65 | IP 65 |
| Electrical connection | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz |
| Power / kW | 0.1 | 0.1 | 0.1 |
| Control voltage | 24V | 24V | 24V |
| Water supply warm | ½” | ½” | ½” |
| Water supply cold | ½” | ½” | ½” |
| Water drainage | DN32 | DN32 | DN32 |
| Type | ELP-EWG-2S | ELP-EWG-3S | ELP-EWG-4S |
The EWG-1S single-person washbasin is a godsend when it comes to personal hygiene.
Dimensions: 500x546x760mm
The sink is ergonomically designed and the sensor control reduces the risk of contamination.
In addition, the sink and tap are made entirely of stainless steel.
To prevent unpleasant odours, there is a stench trap in the drain pipe. This is supplied as standard.
